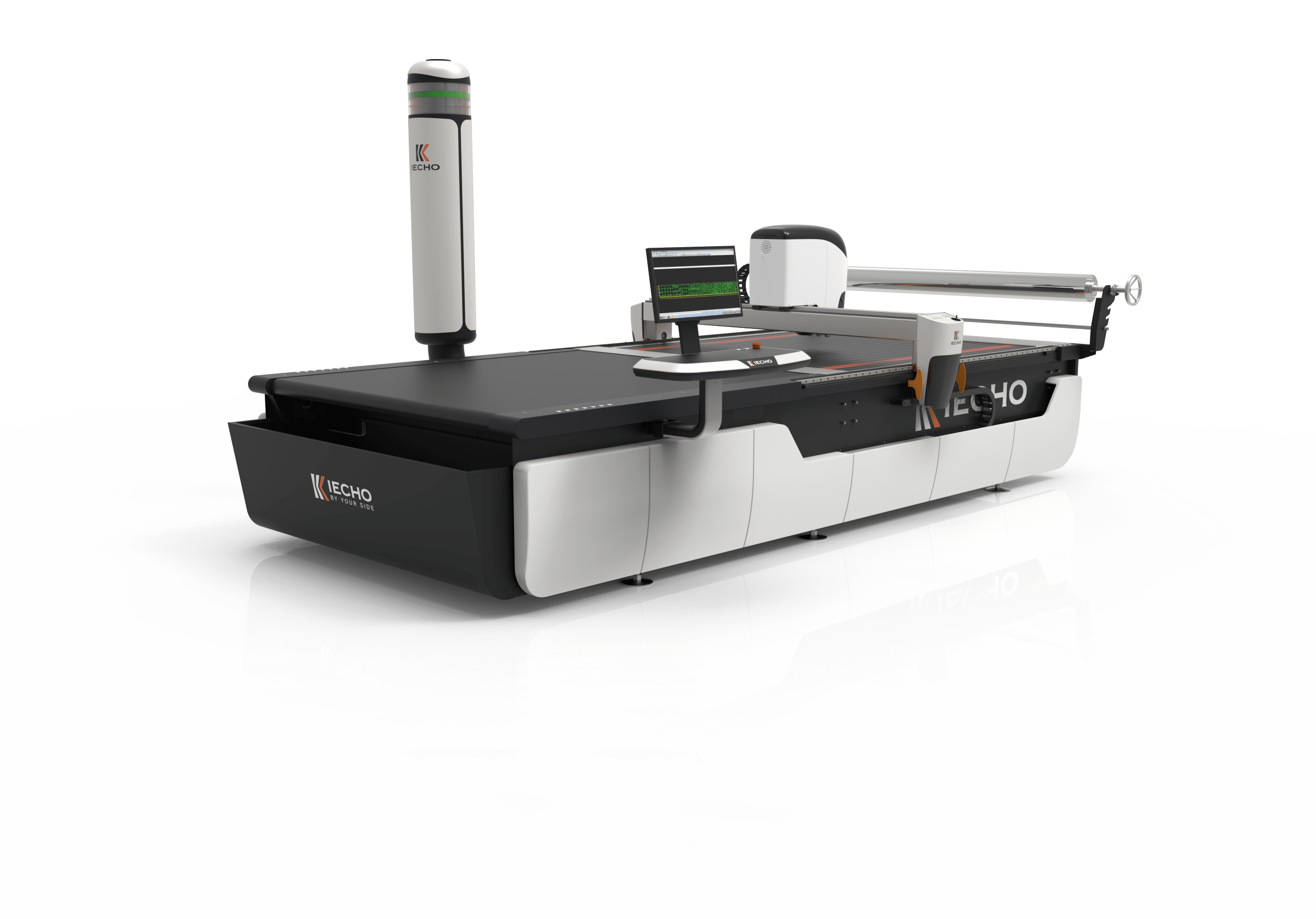

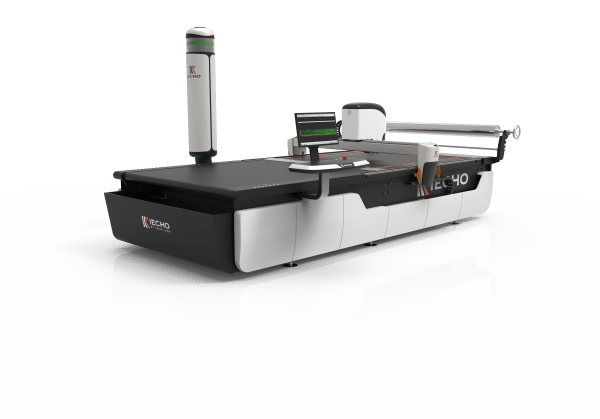

iEcho GLSC Automatic Fabric Cutting System
The GLSC Automatic Multi-Ply Cutting System delivers unparalleled solutions for mass production across industries such as textiles, furniture, automotive interiors, luggage, and outdoor equipment. Featuring the advanced iEcho high-speed Electronic Oscillating Tool (EOT), this cutting-edge automatic fabric cutting machine combines speed, precision, and intelligence to handle soft materials efficiently.
Seamless Integration with Mainstream CAD Software Powered by the iEcho CUTSERVER Cloud Control Center, the GLSC system includes a robust data conversion module that ensures seamless compatibility with popular CAD software. This integration streamlines your workflow and maximizes productivity.
Innovative One-Time Molding Steel Frame
The GLSC features a fuselage frame crafted from premium carbon structural steel. Formed using a large five-axis gantry milling machine, this design guarantees exceptional equipment accuracy. Stress-relieving annealing treatment and flaw detection technology further enhance durability, ensuring stable performance during transportation, high-speed operations, and long-term use. This meticulous engineering extends the lifespan of the equipment.
Redesigned Vacuum Chamber
The GLSC introduces a new vacuum chamber design, significantly enhancing structural rigidity. With an overall deformation of only 0.1mm under 35 kPa pressure, the chamber ensures optimal performance. The optimized ventilation airway enables intelligent and rapid suction force adjustments during cutting, eliminating the need for secondary coatings.
Fully Automatic Continuous Cutting Functionality
The GLSC’s fully automatic continuous cutting feature streamlines production with advanced capabilities:
- Cutting while feeding for uninterrupted operations.
- Automatic sensing and synchronization with the feeding back-blowing function for enhanced efficiency.
Choose the GLSC Automatic Multi-Ply Cutting System to elevate your production process with high-speed precision, superior durability, and intelligent integration. Perfect for modern manufacturing demands, this automatic fabric cutting machine is your key to consistent, high-quality output.
| Machine Model | GLSC1818 | GLSC1820 | GLSC1822 |
| Length x Width x Height | 5m*2.5m*2.4m | 5m*2.7m*2.4m | 5m*2.9m*2.4m |
| Effective Cutting Width | 1.8m | 2.0m | 2.2m |
| Size of Blade | 2.4*8.5mm/2*7mm | 2.4*8.5mm/2*7mm | 2.4*8.5mm |
| Effective Cutting Length | 1.8m | ||
| Picking Table Length | 2.2m | ||
| Machine Weight | 3.0-3.5t | ||
| Operating Voltage | AC 380±10% 50Hz-60Hz | ||
| Installation Total Power | 38.5kW | ||
| Average Energy Consumption | 15-25kWh | ||
| Environment & Temperature | 0⁰ – 43⁰C | ||
| Noise Level | ≤80dB | ||
| Air Pressure | ≥0.6MPa | ||
| Maximum Vibration Frequency | 6000RPM | ||
| Maximum Cutting Height (after absorption) | 90mm | ||
| Maximum Cutting Speed | 60m/min | ||
| Maximum Acceleration | 0.8G | ||
| Cutter Cooling Device | ○ Standard ● Optional | ||
| Lateral Movement System | ○ Standard ● Optional | ||
| Punching Heating | ○ Standard ● Optional | ||
| 2 Punching/3 Punching | ○ Standard ● Optional | ||
| Equipment Operating Position | Right Side | ||
- The product parameters and functions listed are subject to change without notice
