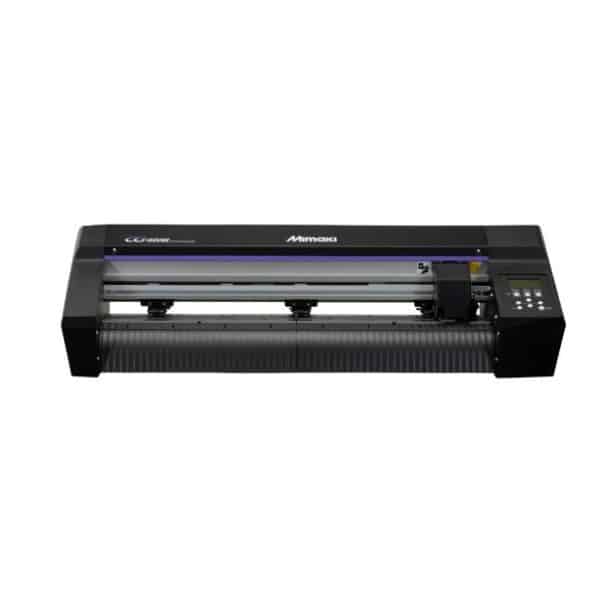

Mimaki CG-60AR

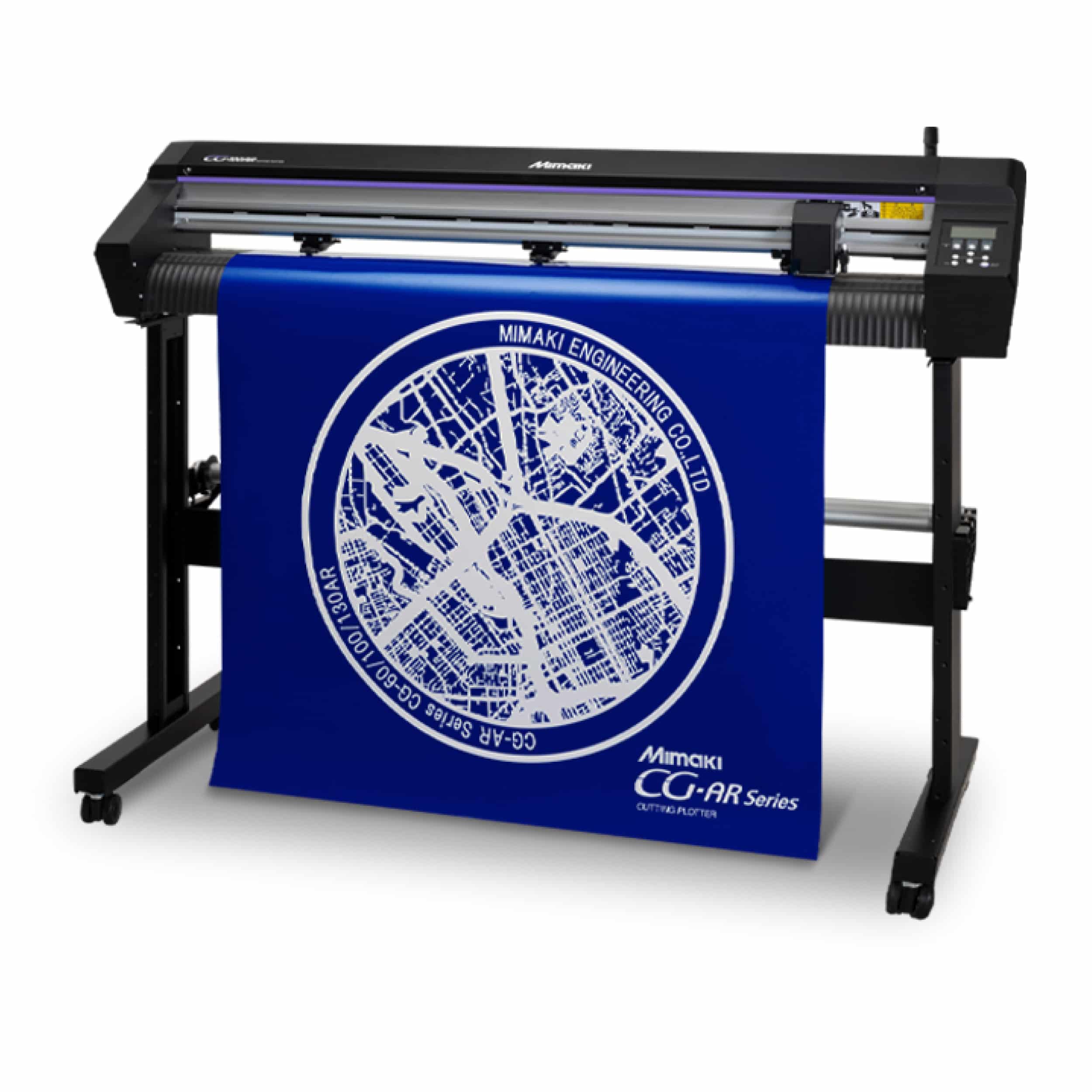

Mimaki CG-130AR

Mimaki CG-AR Series Cutting Plotter

​Introducing the Mimaki CG-AR Series cutting plotter — your friendly companion for precise and efficient cutting tasks. Designed with versatility in mind, this entry-level plotter offers professional-grade features to handle a wide range of materials, from vinyl and cardboard to paper crafts.​

With a cutting pressure of 550g, the highest in its class, the CG-AR Series ensures clean and accurate cuts every time. Its maximum cutting speed of 73 cm/s boosts productivity, allowing you to complete projects swiftly. The series supports full cutting and folding lines on cardboard, enabling the creation of packages up to A3 size with optional accessories.

Key features include:​

  • High cutting pressure — 550g for handling diverse materials​

  • Efficient cutting speed — up to 73 cm/s for increased productivity

  • Versatile material compatibility — ideal for labels, stickers, cardboard, and paper crafts​

  • User-friendly operation — seamless integration with Windows plotter driver​

  • ID Cut function — efficient print and cut coordination with Mimaki printers​

The CG-AR Series cutting plotter comes in three models to suit your workspace and project needs:​

  • CG-60AR — Effective cutting width of 606 mm (23.8")​

  • CG-100AR — Effective cutting width of 1,070 mm (42.1")​

  • CG-130AR — Effective cutting width of 1,370 mm (53.9")​

Whether you're crafting intricate designs or producing packaging, the Mimaki CG-AR Series cutting plotter offers the reliability and precision you need to bring your creative ideas to life.

  CG-60AR CG-130AR
Acceptable sheet width 90 – 740 mm
(3.5 – 29.1″)		 90 – 1,550 mm
(3.5 – 61.0″)
Effective cutting area *1 606 mm × 51 M (23.9″ x 167.3′) 1,370 mm × 51 M (53.9″ x 167.3′)
Maximum speed Cutting: 73 cm/s (28.7″/s), Moving at 45° direction: 103 cm/s (40.5″/s)
Adjustable speed range 1 – 10 cm/s (1 cm/s step adjustment): 0.4 – 3.9″/s (0.4″/s step adjustment)
10 – 73 cm/s (5 cm/s step adjustment): 4.0 – 28.7″/s (2.0″/s step adjustment)
Mechanical resolution X direction: 2.5 μm, Y direction: 5 μm
Command resolution 25 μm, 10μm（MGL-IIc） / 100 μm, 50 μm（MGL-Ic1）
Repeatability *2 ± 0.2 mm / 2 M
Effective Repeatability 586 mm × 2 M 1,350 mm × 2 M
Maximum pressure 550g
Range
of down pressure		 Cutter 10 – 20 g (2 g step), 20 – 100 g (5 g step), 100 – 550g (10g step)
Pen 10 – 20 g (2 g step), 20 – 100 g (5 g step), 100 – 150g (10 g step)
Creasing tool 10 – 20 g (2 g step), 20 – 100 g (5 g step), 100 – 550g (10g step)
Acceptable sheet *3*4 Vinyl sheet, Fluorescent type vinyl sheet, Reflective sheet, Rubber sheet and Cardboard (used in combination with an optional sheet table)
Acceptable tool *5 Eccentric cutter, Creasing tool, commercially available ball-point pen
Type of command MGL-IIc / MGL-Ic1
Interface USB, RS-232C, Ethernet
Receiver buffer size About 27 MB as standard (17 MB when sorting is effective)
Operational environment Temperature: 5 – 35 °C (41 – 95 ⁰F),
Humidity: 35 – 75 ％ Rh (Non-condensing)
Power supply AC 100 V – 240 V 1A 50/60Hz
Power consumption 168W or less 228W or less
Dimensions（W×D×H） 1,010 × 355 × 355 mm
(39.8 × 14.0 × 14.0″)
1,010 × 580 × 1,160 mm *6
(39.8 × 22.8 × 45.7″) *6		 1,810 × 580 × 1,160 mm
(71.3 × 22.8 × 45.7″)
Weight 17kg (37.5 lb)
27kg (59.5 lb) *6		 43kg (94.8 lb)
Stand Options Standard equipment
