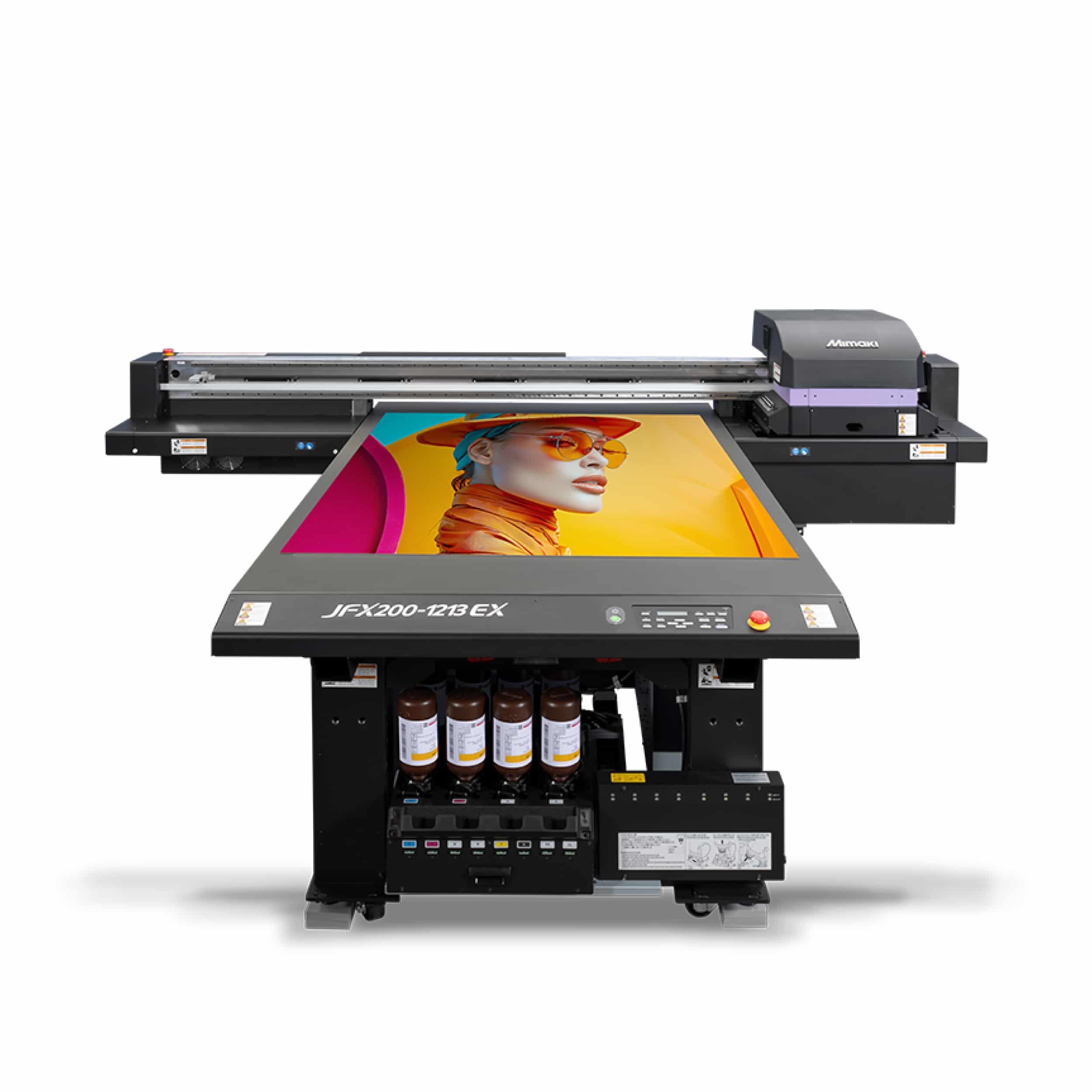

Mimaki JFX200-1213 EX Flatbed UV Printer
The Mimaki JFX200-1213 EX flatbed UV printer delivers high-quality, versatile, and efficient printing for businesses ready to elevate their output. It’s ideal for signage, displays, and decorative applications.
Key features:
-
Compact design: Fits smaller spaces without compromising performance.
-
Fast print speeds: Achieves speeds up to 25m²/h for faster turnaround.
-
High-quality output: Vibrant, precise prints on diverse materials.
-
Texture printing: Create stunning, layered, raised effects with ease.
-
User-friendly operation: Front-side media loading and easy maintenance access.
-
Advanced stability: Mimaki’s NCU (Nozzle Check Unit) and NRS (Nozzle Recovery System) ensure uninterrupted printing.
-
Eco-friendly UV inks: Fast-curing, low-VOC inks for environmentally conscious production.
The Mimaki JFX200-1213 EX boosts productivity, enhances output quality, and supports a wide range of materials — perfect for growing businesses.
| JFX200-1213 EX | ||
|---|---|---|
| Head | On-demand Piezo head (Array of 3 heads stagger) | |
| Print resolution | 300, 450, 600, 900, 1,200dpi | |
| Ink | Type | UV curable ink: LUS-120 (C, M, Y, K, W, Cl) |
| UV curable ink: LUS-150 (C, M, Y, K, Lc, Lm, W) | ||
| UV curable ink: LUS-211 (C, M, Y, K, W, Cl) *Only available in some regions. |
||
| UV curable ink: LUS-350 (C, M, Y, K, W, Cl) | ||
| UV curable ink: LH-100 (C, M, Y, K, Lc, Lm, W, Cl) | ||
| Primer: PR-200 *1 | ||
| Ink Supply system | 1liter bottle, 250ml bottle (LH-100, LUS-120, PR-200 only) *2 | |
| Ink circulation system *3 | White ink circulation using Mimaki Circulation Technology (MCT) | |
| Maximum diagram dimensions (W×D) | 1,270×1,300 mm (50.0×51.2″) | |
| Media | Dimensions (W×D) | 1,270×1,300 mm (50.0×51.2″) |
| Height | Max. 50 mm (2.0″) | |
| Weight | Less than 50 kg/m2 (10.2 lb./ft2), non-concentrated load | |
| Media absorption | Blower adsorption type + foot switch | |
| Number of absorption area partitions |
2 partitions (X-axis direction) | |
| Curing device | LED-UV system | |
| Interface | USB2.0, Ethernet | |
| Safety standard | VCCI class A, CE mark, CB report, U.S. safety standard UL (UL62368-1), RoHS Directive, FCC Class A, Machinery directive, RCM | |
| Input power supply | Single phase, AC 200-240 V, 50/60 Hz, less than 12 A | |
| Power consumption | Less than 2.88 kVA | |
| Installation environment | Temperature | 15 – 30°C (59 – 86°F) |
| Relative humidity | 35 – 65 %Rh | |
| Accuracy maintained temperature | 20 – 25°C (68 – 77°F) | |
| Temperature gradient | Less than ± 10°C/h (± 18°F/h) | |
| Dust | Similar to standard office environments | |
| Assembled Dimensions (W×D×H) | 3,142×2,320×1,235 mm (123.7×91.3×48.6″) | |
| Weight | 510 kg (1,124.3 lbs.) | |
