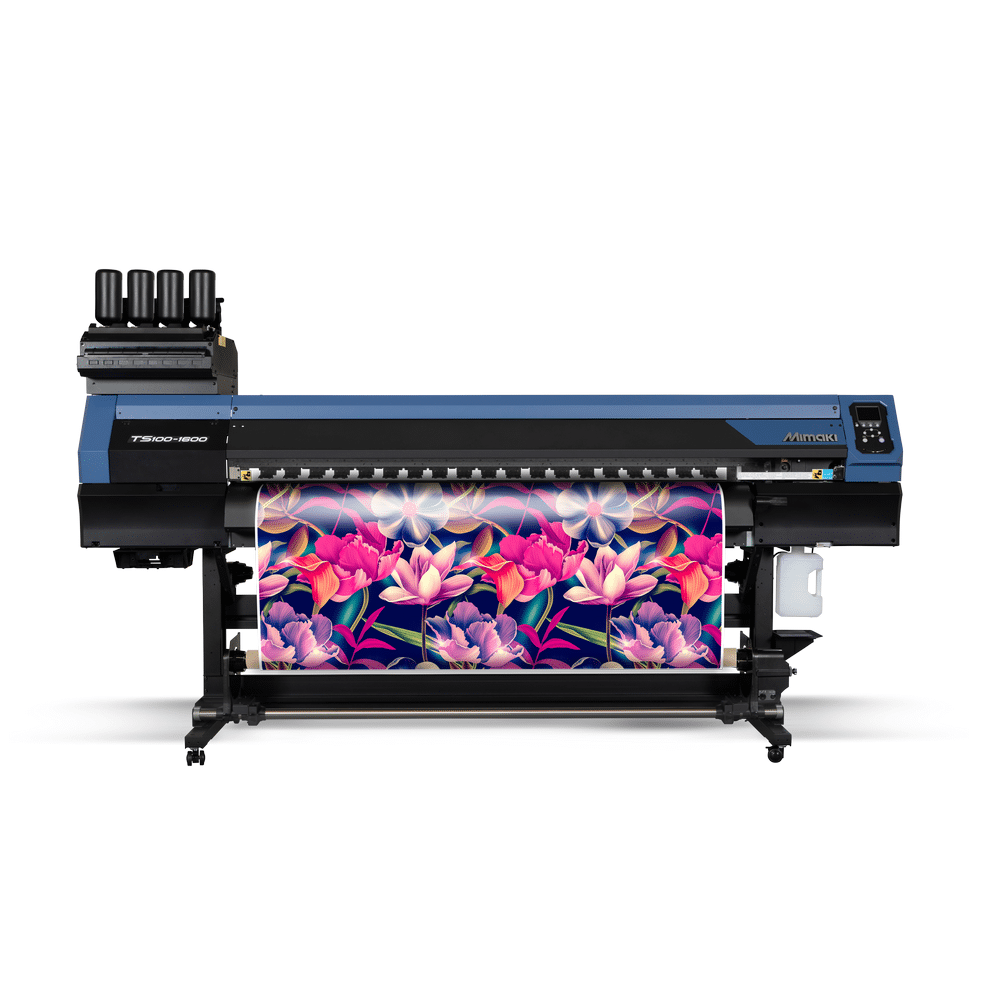

Mimaki TS100-1600 Sublimation Printer

All-in-one entry model that can handle everything from sample creation to large-lot production

The Mimaki TS100-1600 Sublimation Printer combines high-speed production with exceptional print quality, making it perfect for businesses entering or expanding in the textile market. Designed for efficiency and ease of use, this printer offers professional-grade results without sacrificing affordability.

Key features:

High-speed performance: Dual print heads enable speeds up to 70 m²/h, ensuring fast turnaround for bulk orders.
Precision printing: Built-in DAS (Dot Adjustment System) automatically adjusts dot positioning and feed corrections for consistently sharp output.
Reliable production: Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS) detect and compensate for missing nozzles, reducing downtime.
Versatile media handling: Supports a variety of transfer papers for vibrant textiles, sportswear, soft signage, and interior decor.
Advanced RIP software: Bundled with Mimaki’s user-friendly RIP software for color management and streamlined workflow.
Eco-friendly operation: Water-based sublimation inks ensure a more sustainable, low-emission printing process.
Affordable investment: Designed for cost-effective operation without compromising on performance or quality.

The Mimaki TS100-1600 Sublimation Printer is the smart choice for businesses looking to produce vibrant, long-lasting textiles with speed, precision, and reliability.

Print head		On-demand piezo head (2 staggered layout)
Printing resolution		360dpi, 600dpi, 720dpi, 900dpi
Maximum drawing width		1,610mm (63in)
Media	Maximum width	1,620mm (64in)
	Thickness	1mm or lower
	Roll diameter	250mm or less
	Roll weight	45kg (99lb) less
Ink set		4C (C,M,Y,K)
Ink	Type	SB610 (C, M, Y, K)
Ink	Capacity	1000ml bottle
Interface		USB2.0/Ethernet
Power		Single-phase AC100-120V / AC200-240V±10%
Power		50/60Hz±1Hz
Power consumption		AC100V: 1,440W or less x1 / AC200V:1,920W or less x1
Operational environment		Temperature: 20-30⁰C (68-86⁰F)
Operational environment		Humidity: 35-65%Rh (without condensation)
Dimensions (WxDxH)		2,775 x 700 x 1,475mm (109 x 28 x 58in)
Weight		166kg (366lb)

Mimaki inks Sb610 are OEKO-TEX® certified. ECO PASSPORT by OEKO-TEX® is a mechanism by which textile chemical suppliers demonstrate that their products are suitable to print skin-friendly clothing and other textiles for end users.
