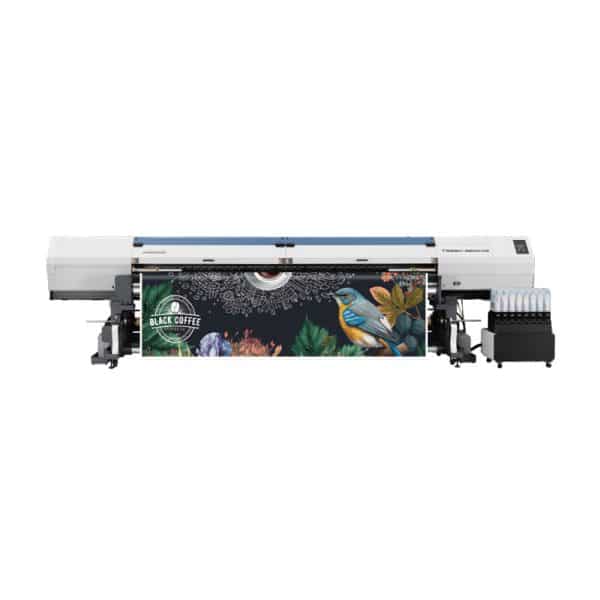

Mimaki TS330-3200DS

Mimaki TS330-3200DS Hybrid Textile Printer

The Mimaki TS330-3200DS delivers versatile, high-performance textile printing for soft signage and interior fabrics. This advanced hybrid printer supports both direct-to-fabric and sublimation transfer printing, making it ideal for diverse applications.

Key Features:

  • 3.2m wide hybrid textile printer — handles direct fabric and sublimation transfer printing in one machine.

  • High-speed production — ensures quick turnaround times without sacrificing quality.

  • Vibrant, high-resolution prints — advanced "330 Engine" technology creates stunning gradients and rich, deep colors.

  • Double-sided visibility — direct printing penetrates the fabric for a vivid effect on both sides.

  • Ideal for multiple applications — perfect for soft signage, interior décor, fashion, and sportswear.

  • Built for efficiency — streamlines the printing process to reduce time and material waste.

  • Reliable performance — designed to handle large-format jobs with consistent output quality.

  • Flexible material support — works with stretchable fabrics and thicker textiles, expanding creative possibilities.

The Mimaki TS330-3200DS redefines hybrid textile printing by combining speed, versatility, and outstanding image quality in one powerful machine. Whether producing eye-catching signage or premium interior fabrics, this printer delivers results that stand out.

TS330-3200DS
Print head On-demand piezo head (2 staggered layout)
Print resolution 300, 600, 1200 dpi
Print gap By manual 3 levels (3.0/3.5/4.0 mm)
Ink Type/Color Sublimation ink
Sb420 (Bl, M, Y, K)
Sb411 (Bl, M, Y, K)
Capacity 2L Ink pack / 10 kg Ink tank (When the optional unit is used)
Maximum print width 3,240mm (127.6″)
Media Type Sublimation transfer paper, textile
Maximum width 3,250mm (128.0″)
Thickness 1.0 mm or less
Roll diameter φ250 mm (9.8″) or less
Roll weight 100 kg (220.5 lb) or less
Roll inside diameter 3 inch
Interface Ethernet 1000 BASE-T / (USB2.0 Hi-speed)
Certifications VCCI class A, FCC class A, ETL IEC 62368-1,
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, REACH, RCM, KC, UKCA
Power supply Single-phase AC200 – 240V ±10% 10A, 50/60Hz ±1Hz
Power consumption Up to 2,400W (Max.), 800 W (when continuously operated), 4.5W (sleep mode)
Operational environment Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Noncondensing)
Recommended temperature: 20–25 °C (68–77 °F)
Dust level: General office level
Dimensions (W×D×H) 5,410mm x 1,075mm x 1,440mm (213.0″ x 42.3″ x 56.7″)
Weight 925kg (2,039.3 lb)
