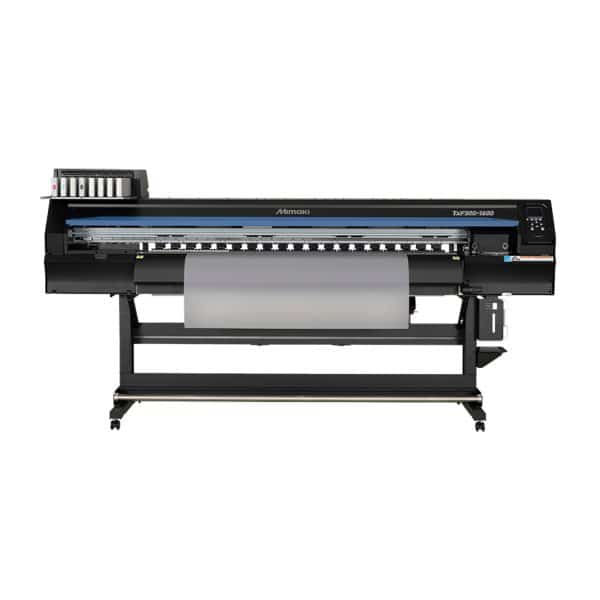

Mimaki TxF300-1600 DTF Printer

Mimaki TxF300-1600 DTF Printer

Take your printing to the next level with the Mimaki TxF300-1600 DTF Printer — designed for speed, quality, and versatility. This advanced direct-to-film (DTF) printer ensures stunning results on various textiles with impressive ease of use and reliability.

Key Features:

  • High-speed printing: Boost productivity with faster output, making large-volume jobs quicker and more efficient.

  • Wide media support: Handle rolls up to 63” wide, perfect for apparel, signage, and promotional products.

  • Vibrant, long-lasting prints: Achieve rich, durable colors suitable for both indoor and outdoor applications.

  • User-friendly operation: Equipped with intuitive RIP software for hassle-free setup and precise print control.

  • Mimaki Core Technologies: Benefit from Nozzle Recovery, Waveform Control, and Circulation Technology for consistent, high-quality output.

  • Low maintenance: Designed to minimize downtime with simplified maintenance and fewer moving parts.

The Mimaki TxF300-1600 DTF Printer combines speed, precision, and versatility, making it an ideal solution for high-volume textile production. Whether you’re creating custom apparel, promotional merchandise, or vibrant graphics, this printer delivers outstanding results — every time.

TxF300-1600
Print head On-demand piezo head
Printing resolution 720dpi, 1,080dpi, 1,440dpi
Ink Type/Color Heat transfer pigment ink PHT50 (C, M, Y, K, W)
Capacity 600 ml ink pack (500 ml for white only)
Circulation function Available only for white ink
Maximum print width 1,610 mm (63.4 in)
Media Maximum width 1,620 mm (63.8 in)
Thickness 1.0 mm or less
Roll weight 45 kg (99.2 lb) or less
Interface Ethernet 1000 BASE-T / USB2.0 Hi-speed
Power specifications Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1
Power consumption 100V system: 1.3kW or less, 200V system: 1.75kW or less
Certifications VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, KC
Dimensions (W×D×H) 2,783 x 700 x 1,392 mm (109.6 x 27.6 x 54.8 in)
Weight 166 kg (366.0 lb)
