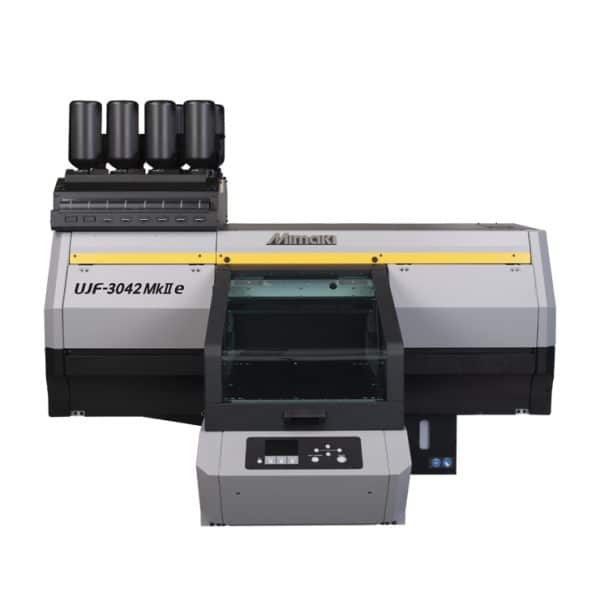

Mimaki UJF-3042MkII e UV-LED Flatbed Inkjet Printer

Introducing the Mimaki UJF-3042MkII e, a compact and versatile flatbed UV inkjet printer designed to bring your creative ideas to life with precision and ease. Building upon the success of its predecessor, this A3-sized printer offers enhanced image quality and machine stability, making it an ideal choice for businesses seeking to produce high-value, customized products.

Key Features:

High-Quality Printing: Equipped with three staggered on-demand piezo printheads, the UJF-3042MkII e achieves a maximum resolution of 1200 x 1200 dpi, ensuring crisp and vibrant prints.
Versatile Media Handling: Capable of printing on materials up to 153 mm in height and 5 kg in weight, this printer accommodates a wide range of substrates, including plastic, acrylic, metal, glass, and more.
Advanced Ink Options: Compatible with various UV-curable inks—LH-100, LUS-120, LUS-150, and PR-200 primer—the UJF-3042MkII e offers flexibility to meet different application needs.
Enhanced Image Quality: The incorporation of "MFD2 (half-toning)" technology improves image quality by reducing noise and delivering smoother gradations.
Automation Support: With support for "MDL commands," the printer facilitates automation and labor-saving in the printing process, such as workpiece transfer.
User-Friendly Software: The included "RasterLink7" software enables numbering and variable data insertion printing, enhancing productivity and customization capabilities.
Optional Deodorizing Unit: An optional deodorizing unit efficiently removes odors, creating a more comfortable working environment.

With its compact design and advanced features, the Mimaki UJF-3042MkII e empowers businesses to expand their product offerings and deliver exceptional quality in customised printing.

UJF-3042MkII e
Printhead		On-demand piezo printhead (3 printheads arranged in a staggered line)
Print resolution		Maximum: 1200 x 1200 dpi
Maximum printable area		Width: 300mm Length：420mm (A3 size)
Ink	Type/Color	LH-100 (C, M, Y, K, W, Cl) LUS-120 (C, M, Y, K, W, Cl) LUS-150 (C, M, Y, K, W) PR-200 (Primer)
Ink	Packaging	LH-100, LUS-120, PR-200: 250 ml bottle / 1 L bottle LUS-150: 1 L bottle
Media	Thickness	153 mm (6 in) or less
Media	Weight	5 kg (11 lb) or less
Certifications		VCCI class A / FCC class A / ETL IEC 62368-1 / CE Marking (EMC, Low voltage, Machinery directive, and RoHS) / CB / REACH / Energy Star / EAC / RCM
Interface		Ethernet / USB2.0
Noise level		Standby mode: 55dB or less (FAST-A, measured1 m away from the source) Continuous operation: 65 dB or less Discontinuous operation: 70 dB or less
Power supply		Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz
Power consumption		1,000W or less
Operational environment	Temperature	20 – 30°C (68 – 86°F)
	Humidity	35 – 65％Rh (Non condensing)
	Recommended Temperature	20 – 25°C (68 – 77°F)
	Temperature change	±10°C (±50°F) /h or less
	Dust level	Equivalent to a general office floor level
RIP software		RasterLink7 (Bundled)
