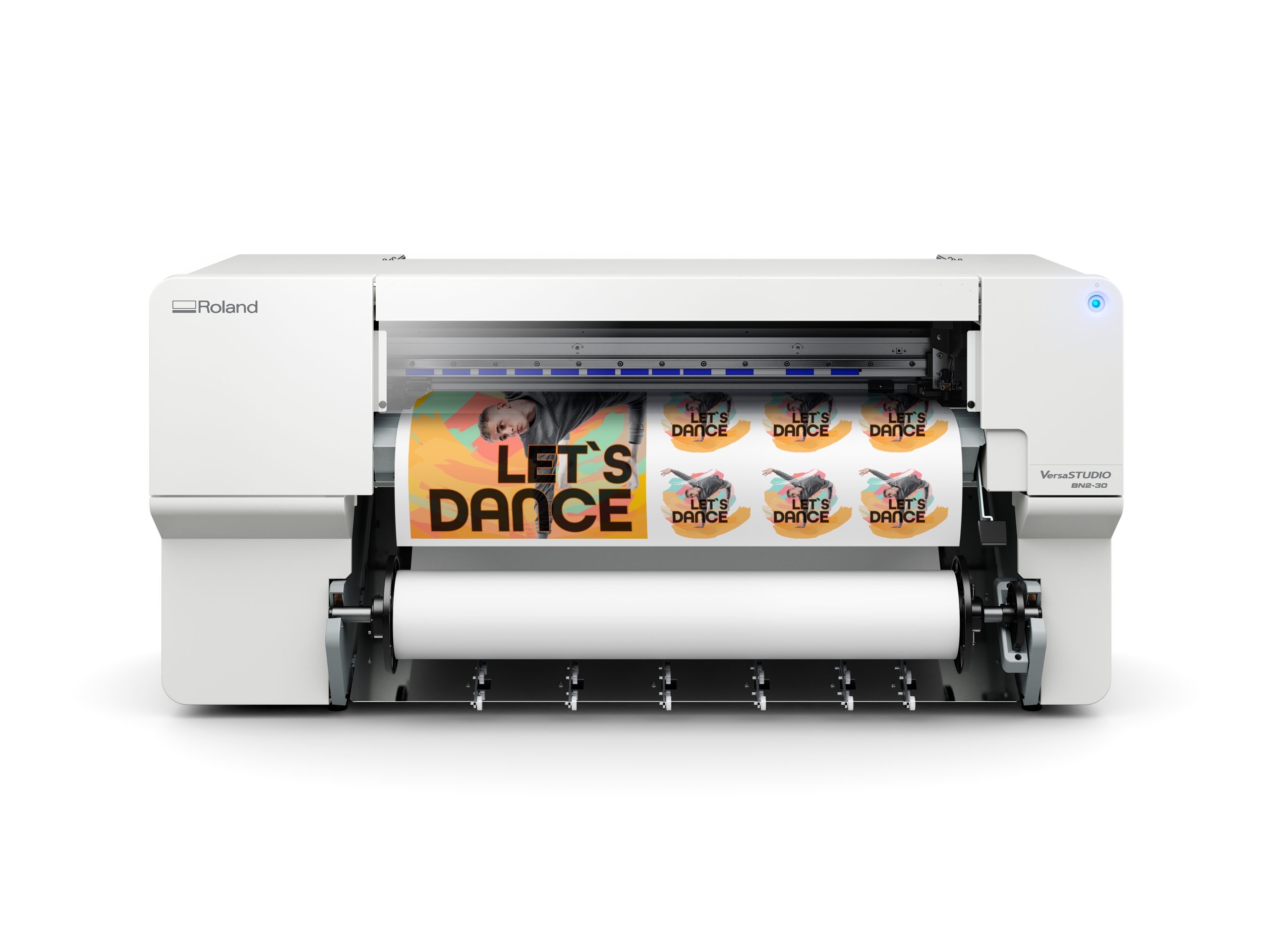

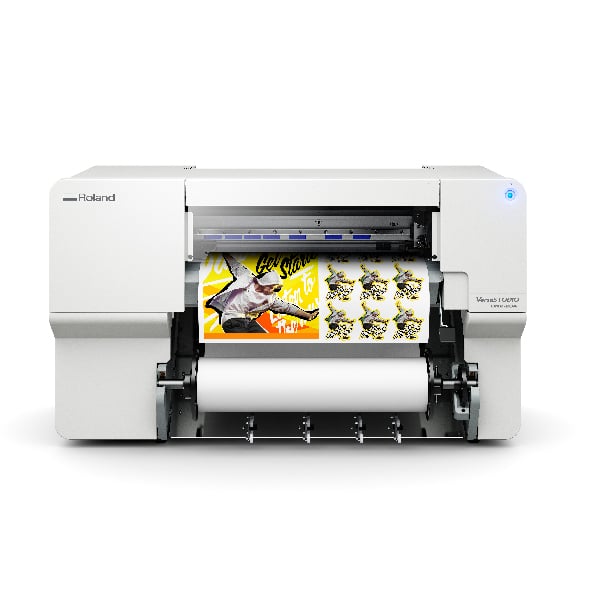

VersaSTUDIO BN2 Series Printer Cutter
Professional Print & Cut Starts Here
The next generation of VersaSTUDIO BN2 Series printer cutter has been engineered to deliver high-quality print and cut capabilities in a compact footprint. Designed for small businesses and home-based operations, it provides professional results without occupying excessive space.
Integrated Print and Cut Functionality
An advanced print and cut technology has been incorporated, allowing seamless transition from printing to contour cutting. This integration streamlines the workflow, reducing manual intervention and increasing efficiency.
Enhanced Productivity and Speed
Printing speeds have been increased up to four times compared to previous models, significantly boosting productivity. The ability to efficiently handle complex shapes ensures that intricate designs are produced with precision.
User-Friendly Operation
The BN2 Series has been designed with user convenience in mind. Front-loading media and ink systems simplify setup and maintenance. An intuitive interface allows users of all experience levels to operate the machine with ease.
High-Quality Output
Utilizing the same high-definition printheads and inks as professional-grade Roland DG printers, the BN2 Series delivers vibrant colors and sharp details. Small text and fine lines are rendered with exceptional clarity.
Versatility Across Applications
Suitable for a variety of applications, including stickers, labels, apparel graphics, and signage, the BN2 Series adapts to diverse business needs. Its compact size does not compromise its versatility.
The VersaSTUDIO BN2 Series printer cutter stands as a reliable solution for businesses seeking professional-quality print and cut capabilities in a space-saving design.
| Ink Type | Eco-Sol Max 2 (Cyan, Magenta, Yellow, Black + White) |
|---|
| BN2-20A | BN2-20 | BN2-30 | ||
| Printing Method | Piezo Inkjet Method | |||
| Dimensions | 1,069 x 617 x 622mm | 1,323 x 617 x 622mm | ||
| Weight | 62kg | 74kg | ||
| Media | Width | 150 to 515mm | 150 to 762mm | |
| Thickness | Max 1.0mm with liner for printing. Max. 0.4mm with liner and 0.22mm without liner, for cutting |
|||
| Roll Outer Diameter | Max. 150mm | Max. 165mm | ||
| Roll Weight | Max. 6kg | Max. 12kg | ||
| Core Diameter | 76.2mm or 50.8mm | |||
| Printing/Cutting Width | Max. 480mm | Max. 736mm | ||
| Ink | Type | 220ml cartridge | ||
| Colours | Cyan, Magenta, Yellow, Black | Cyan, Magenta, Yellow, Black, White | Cyan, Magenta, Yellow, Black Cyan, Magenta, Yellow, Black, White |
|
| Resolution | Max. 1,440 dpi | |||
| Cutting Speed | 10 to 150mm/s | |||
| Connectivity | Ethernet (100BASE-TX/1000 BASE-T, automatic switching) | |||
| Power-saving function | Automatic sleep function | |||
| Rated Input | 100-240V a.c. 50/60Hz 2.1A | 100-240V a.c. 50/60Hz 2.9A | ||
| Power Consumption | During Operation | Approx. 185W | Approx. 260W | |
| Sleep Mode | Approx. 27W | |||
| Acoustic Noise Level | During Operation | 62dB (A) or less | 65dB (A) or less | |
| Sleep Mode | 60dB (A) or less | 63dB (A) or less | ||
| Included Items | Dedicated stands, power cord, media take-up unit, media holders, replacement blade for separating knife, User’s Manual, software (FlexiDESIGNER VersaSTUDIO edition, VersaWORKS, Roland DG Connect) | |||
Graphics, Apparel, Labels, Decals, Signs, Displays, Art and Wall Decor Posters, Vehicle Graphics
