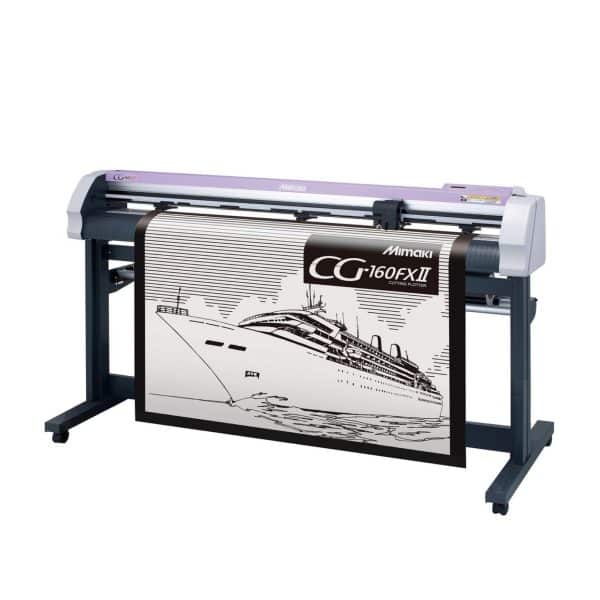

Mimaki CG-FXII Series Cutting Plotter
​Introducing the Mimaki CG-FXII Series cutting plotter — your reliable partner for high-precision cutting tasks. Designed to enhance productivity, this series offers advanced features tailored to meet diverse cutting needs.​
Key Features:
-
Continuous Crop Mark Detection: An optical sensor automatically detects crop marks throughout nested images, ensuring precise contour cutting.
-
Accurate Media Feeding: The system feeds the necessary media length in advance, reducing tension and enhancing cutting precision over longer prints. ​
-
Half-Cut Mechanism: Mimaki's proprietary half-cut function allows the backing sheet to remain partially attached, facilitating easy handling of cut pieces. ​
-
Engineered Head Unit: Features like an automatic sheet cutter and light pointer simplify operations and improve efficiency.
The Mimaki CG-FXII Series cutting plotter comes in three models to suit various project requirements:​
-
CG-75FXII: Effective cutting width of 760 mm (29.9")​
-
CG-130FXII: Effective cutting width of 1,300 mm (51.2")​
-
CG-160FXII: Effective cutting width of 1,600 mm (63.0")​
Whether you're producing signage, decals, or intricate designs, the Mimaki CG-FXII Series delivers the precision and reliability your projects demand.
| CG-75FXII Plus | CG-130FXII Plus | CG-160FXII Plus | ||
|---|---|---|---|---|
| Acceptable sheet width | 90mm~1,040mm (3.54″~40.9″) | 90mm~1,580mm (3.54″~62.0″) | 90mm~1,880mm (3.54″~74″) | |
| Rolled media weight | 18kg (40 lb) or less | 22kg (49 lb) or less | ||
| Roll outside diameter | φ200mm (7.87″) or less | |||
| Effective cutting area *1 | 760mm x 51m (29.9″ x 167′) | 1,300mm x 51m (51.2″ x 167′) | 1,600mm×51m (62.9″×167’) | |
| Maximum auto cutting width *2 | 870mm (34.2″) | 1,425mm (56.1″) | 1,720mm (67.7″) | |
| Maximum cutting speed | 100cm/s (39.3″/s) | |||
| Maximum moving speed | 140cm/s (55″/s) (In a 45° direction and in a pen-up state) | |||
| Adjustable speed range *3 | 1-10cm/s: 1cm step adjustment (0.39″-3.94″/s: 0.39″ step adjustment) 10-50cm/s: 5cm step adjustment (3.94″-19.68″/s: 2″ step adjustment) 50-100cm/s: 10cm step adjustment (19.68″-39.37″ : 3.94″ step adjustment) |
|||
| Mechanical resolution | 5µm (0.0002″) | |||
| Command resolution | 25μm, 10μm(MGL-IIc), 100μm, 50μm(MGL-Ic1) | |||
| Repeatability | ±0.2mm (Excluding shrinkage / expansion caused by the film temperature) | |||
| Accuracy assurance range (Repeatability) | 760mm x 10m (29.9″ x 32.8′) | 1,300mm x 10m (51.2″ x 32.8′) | 1,600mm x 10m (63.0″ x 32.8′) | |
| Max. pressure | 500g | |||
| Range of down pressure | Cutter | 10~20g (2g step), 20~100g (5g step), 100~500g (10g step) | ||
| Pouncing | 10~20g (2g step), 20~100g (5g step), 100~500g (10g step) | |||
| Pen | 10~20g (2g step), 20~100g (5g step), 100~150g (10g step) | |||
| Acceptable sheet *4 | Vinyl up to 0.25mm (0.01″) thickness, Fluorescent type vinyl Reflective sheet |
|||
| Acceptable sheet for pouncing *5 | Paper thickness: 0.06~0.13mm (0.0024″~0.005″) | |||
| Applicable tools *6 | Cutter, Water based ball-point pen, Oil based ball-point pen, Pouncing tool |
|||
| Certifications | VCCI class A, FCC class A, ETL IEC 60950-1 CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, RCM, EAC |
|||
| Type of command | MGL-II c / I c1 | |||
| Interface | RS-232C, USB | |||
| Receiver buffer size | 30MB Standard (20MB when in sorting) | |||
| Operational environment | Temperature: 5~35°C (41~95°F), 35%–75% RH (Non-condensing) | |||
| Power requirement | AC100V~240V　1A 50/60Hz | |||
| Power consumption | 100W or less | |||
| Dimensions (WxDxH) | 1,285mm(50.5″)x 700mm(27.5″)x 1,217mm(47.9″) |
1,825mm(71.8″)x 700mm(27.5″)x 1,217mm(47.9″) |
2,125mm(83.6″)x 700mm(27.5″)x 1,217mm(47.9″) |
|
| Weight (with stands) | 47kg (104 lb) | 62kg (137 lb) | 70kg (154 lb) | |
